Mechanical Keychain Assembly

Nov 2025 – Dec 2025

SolidWorksGD&TCNC MachiningManual Machining

A four-component aluminum mechanical keychain modeled in SolidWorks with GD&T, then machined on manual and CNC equipment and assembled.

Mechanical Keychain Assembly

Overview

I modeled a four-component aluminum keychain assembly (top plate, bottom plate, spacer, and keyring connector) in SolidWorks, using fully constrained, dimensionally complete sketches with clear primary, secondary, and tertiary datums.

GD&T and fit

GD&T fundamentals (hole position, concentricity, and thickness tolerances) were applied so that the fasteners, gear, and keyring interfaces align properly.

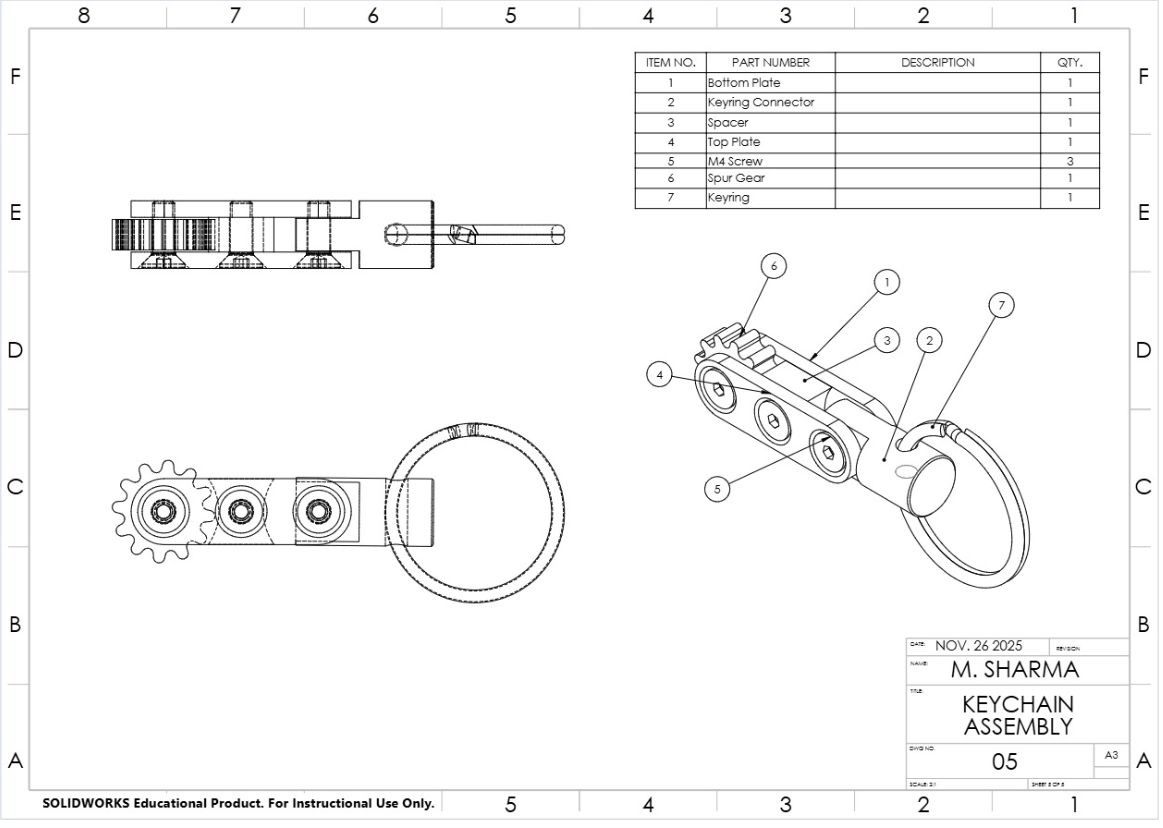

SolidWorks drawing sheet for the keychain assembly with parts list
Drawing sheet for the keychain assembly (SolidWorks).

Manufacture

I machined the components on manual and CNC equipment and assembled the final product, confirming an accurate, reliable fit across all interfaces.
